VibWire-108 8 Channel Vibrating Wire
Get the most accurate readings with Keynes Controls' VibWire-108 8 Channel Vibrating Wire Sensor Interfaces.
This instrument support sensors from different manufacturers. With Modbus digital networks and 0 - 2V DC output, you can trust our interfaces to deliver reliable analogue data.
Our product specifications include multiple frequency and temperature channels, SDI12 and RS485 network support, full sensor configuration, charts and panel meter displays, and user-defined sample rates. We also offer convenient data storage in CSV text format and optional Wi-Fi and Ethernet LAN connections.
Check out our Intelligent Vibrating Wire Sensor Interfaces, the VibWire-108 Vibrating Wire, to experience the quality and performance we deliver. For more information, please see our product videos or product specification.
Product Specifications:
Boost your productivity with:
- 1 to 8 X 4 Wire Sensor Inputs
- Built-in Frequency Display
- Terminal Port Configuration Option
- Free Windows Application Software
- SDI12 / RS485 / MODBUS Network support
- Switch between MODBUS and RS485 operations.
- Stay informed with charts and panel meter displays
- Online Vibrating Wire Calibration Factor Test Sheet
- Compatible with MODBUS - 16- & 32-Bit Registers
- Customise your sample rates with user-defined settings
- Conveniently store data in CSV text format
- Optional USB Media Converters
- Extended RS485 & SDI12 network support
Product Videos | VibWire-108 8 Channel Vibrating Wire Sensor Interfaces
The videos opposite show the VibWire-108 being configured using the keyboard and also using the free issue Windows Applications Software Q-LOG
The Q-LOG Software can be used for Configuration, Data Acquisition Operations, Sensor Testing, Measurement Display and Data Storage to a Windows PC.
Training Videos

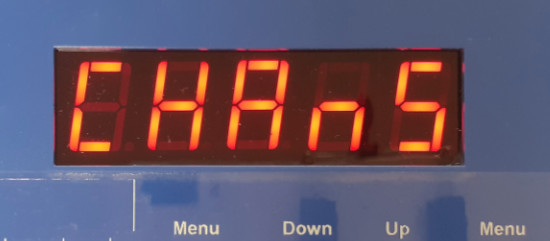

Demo Reading Configuration Settings Video.

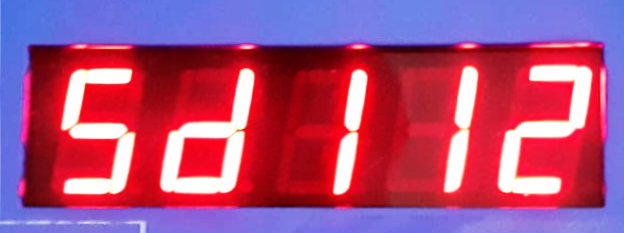

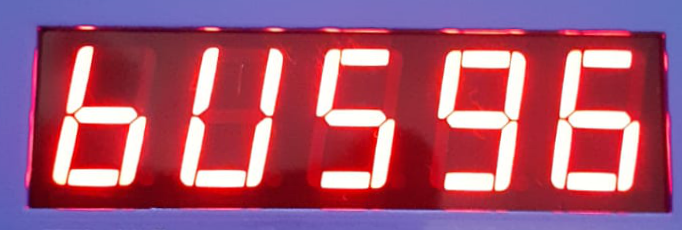

VibWire-108 RS485 and MODBUS network settings Video.

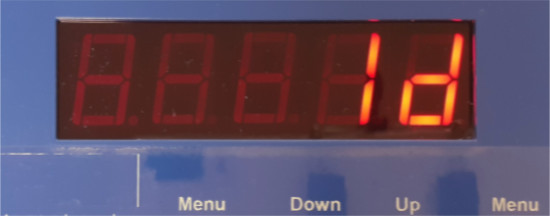

VibWire-108 MODBUS Slave Address Setting.
Q-LOG Windows Application Software
The VibWire-108 family of products can be configured and operated using the Q-LOG Windows applications software that is offered free with all of our products.

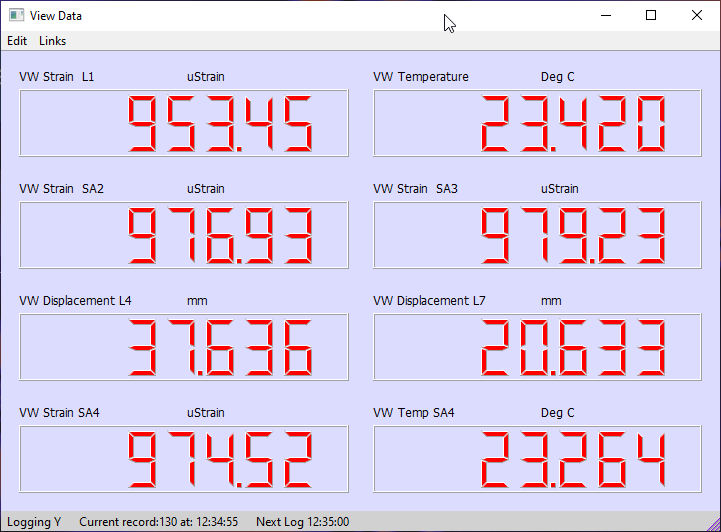

The Q-LOG software can be used to configure, make test measurements, display and record results In a series of user defined panel meters and charts. Compare the measurements between sensor inputs on the same chart.

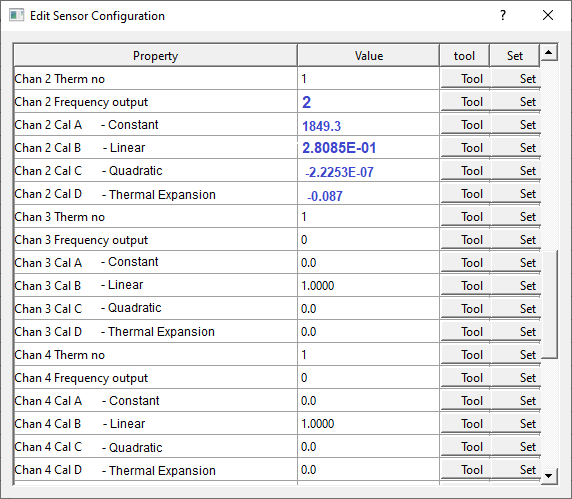

The QLOG Software can be used to write the vibrating wire sensor calibration factors directly into the instruments, The most common industry standard temperature sensor parameters are automatically assigned by default.
The vibrating wire sensor inputs use the standard vibrating wire sensor calibration equation:
where A = Constant B = Linear Term C = Quadratic Term
|
Based on equation
SI (Units) = C(F²) + BF + A - D(T₀-T) + (S₀-S)
|
|
Vibrating Wire Sensor Configuration - Temperature
|
Calculations use the Steinhart-Hart equation
All of the sensor inputs are configured by assigning the sensor calibration factors from a manufactures datasheet.
Care has to be taken to ensure that the Constant and Quadratic terms are entered correctly.
It is possible using the Keynes Controls Vibrating Wire Sensor Calibration Factor test Google sheet to fully test a sensor configuration, before setting up any hardware. The Google sheet can be configured to operate in Hz, Digits, and SI Units.
Once the sensor configuration has been tested on the Google sheet then the sensor calibration factors can be cut and pasted into the VibWire-108 hardware using the QLOG Software.
The user will have every confidence that the instrument configuration is correct before deployment in the field.
Vibrating Wire Sensor Calibration Factor Test Google Sheet
All of the Keynes Controls vibrating wire instruments are supplied with access to our Sensor Calibration Factor Test Google Sheet.
The Google sheet enables the user to enter a sensor calibration factors for both frequency and temperature. The sensor output is calculated using the standard vibrating wire operating equations.
The sheet will display the same result of that returned as a measurement from a sensor interface.
Frequency Settings - Hz, Digits, SI Units
Temperature - °C (Steinhart - Hart) Equtions
Results can be observed on a smart phone, tablet and web browsers.
Select the button below and start testing a vibrating wire sensor configuration.
USB Media Converter
A range of isolated USB media converts are available for these products. The media converters can power the VibWire-108 directly from a PC USB Port.
USB-SDI12-Pro / USB-RS485-Pro
Remote Access
The VibWire-108 instruments containing digital communications can be connected to many different 3rd party data loggers that can be connected to Mobile Phone, Wi-Fi, Satellite networks for remote access.
Terminal Port Menu System
All of the Keynes Controls VibWire-108 8 Channel Vibrating Wire Sensor Interfaces have a terminal port that can be used to fully configure and test the instruments. The terminal port does not require any dedicated software and can be used by any third party application, be that a terminal emulator or intelligent device supporting RS323 communications. No driver software is required for RS232 port communications.
