Intelligent Water Quality Fluorometers by Keynes Controls

The ARGES range of intelligent, high performance submersible chemical sensors have been designed to simplify the acquisition of water quality measurement parameters into any platform that supports data logging operations using digital network communications.

The sensors can be supplied calibrated and installed in multiparameter systems for immediate deployment, or to undertake real-time measurements for web based reporting systems.

Buy Water Sensors Here
7 Port Multiparameter SONDE Kit
ARGES Dissolved Oxygen Multiparameter solution

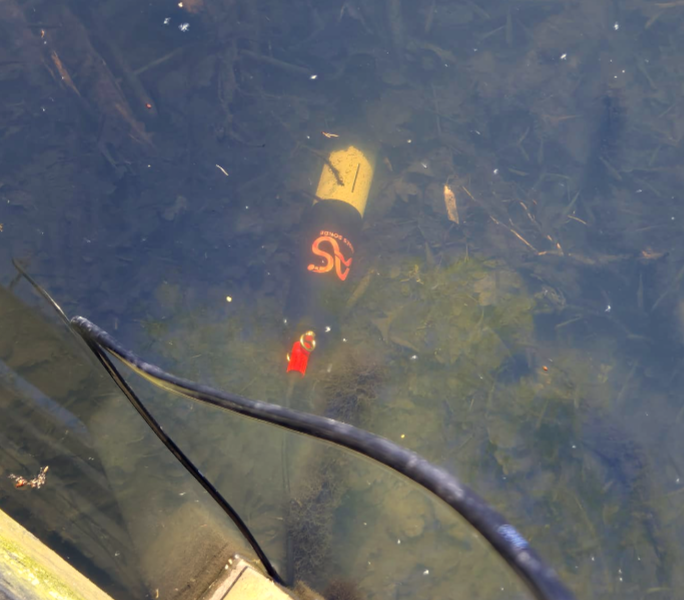

Fluorometers installed into 3 Port SONDE for deployment

ARGES Chemical Sensors

Product Features

  • Built in SDI12 / RS485 / MODBUS Digital Communications
  • Auto-ranging measurements
  • Very low stand-by power
  • Output Type - SI Units, mg/L, ppm, Deg C
  • Solid State selective-ion senors.
  • Digital Fluorometers
  • Real-time and Stand-alone Recording.
  • Simple Calibration
  • Optional Analogue Output proportional to measured concentration
  • Free Windows QLOG Applications Software
Buy Water Sensors Here
ARGES pH sensor calibration test

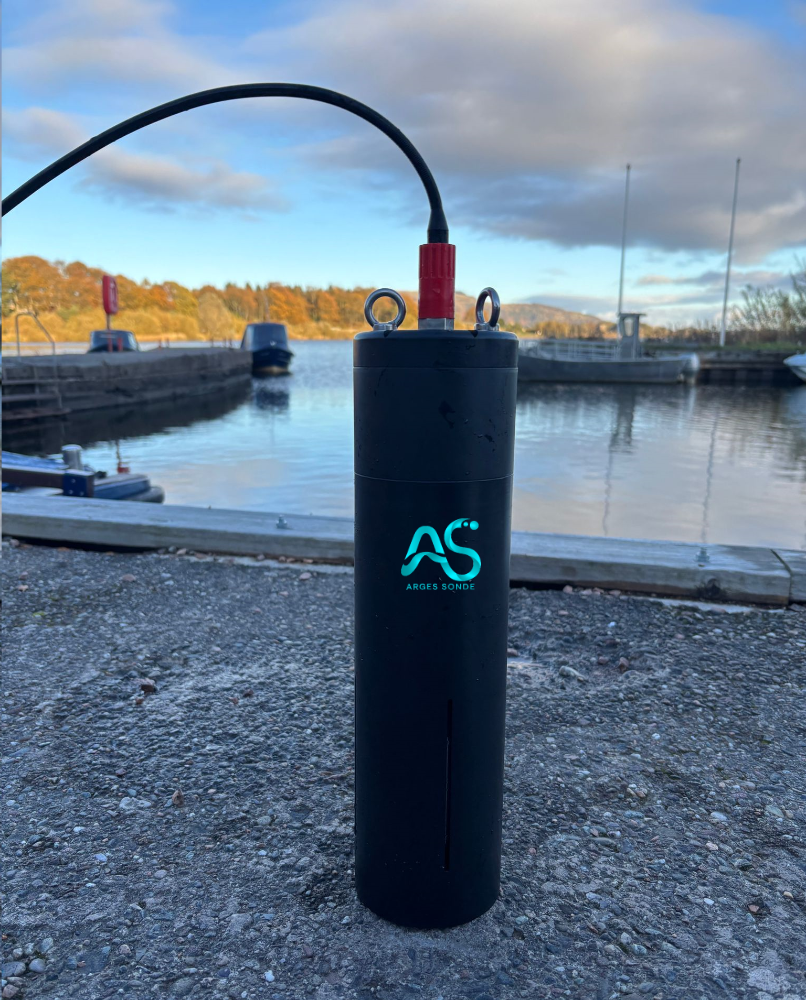

SONDE-3 Port sensor ready for deployment
ARGES 7 Port Sensor Housing

Application Software

Sample Results ARGES pH sensor
Real-time Chloride - Conductivity chart using ARGES Sensors
Realtime results - Tryptophan, CDOM, Turbidity

The applications software enables real-time measurements to be made and displayed into a series of charts and panel meter displays.

The QLOG software that is supplied with the sensors is used to fully configure the sensors and multiparameter systems.

ARGES Fluorometer Range

Specification Detection Limit Range
Turbidity 0.05 NTU 0 - 2000 NTU
Tryptophan 0.5 ppb 0 - 2500 ppb
Rhodamine Dye 0.1 ppb 0 - 1000 ppb
PTSA Dye 0.01 ppb 0 - 700 ppb
Phycoerythrin 0.01 ppb 0 - 750 ppb
Phycocyanin 2 ppb 0 - 4000 ppb
Optional Brighteners 0.6 ppb 0 - 2500 ppb
Crude Oil 0.2 ppb 0 - 1500 ppb
Fine/light Oil 0.3 ppb 0 - 2500 ppb
Fluorescein Dye 0.01 ppb 0 - 1000 ppb
Chlorophyll in vivo
 - Blue Excitation 0.03 pg/L 0 - 500 pg/L
 - Red Excitation (high CDOM) 0.3 pg/L 0 - 500 pg/L
CDOM/FDOM 0.1 ppb 0 - 1,500 ppb
0.5 pg/L 0 - 3000 ppb
