Communication Options
The ARGES range of chemical sensors
USB Port Communications
The ARGES range of chemical sensors are offered with an optional USB to SDI12 media can communicate directly with a Windows Operating System device via a USB port when connected to the USB-SDI12-AG1 media converter.
Part Number: USB-SDI12-AG1
The media converter can power the sensors, and multiparameter SONDE directly from a USB Port. The status indicators show network traffic and the status of the USB Port.
The ARGES Chemical sensors are supplied with free QLOG software used for configuration, calibration operations, making and displaying results.
Web Based Reporting
Web based chemical monitoring is simple when using the ARGES range of sensors. The basic system requires :
- ARGES Sensor
- Web based SDI12 Data Logger
- Cellur Modem - Supporting 3G / 4G / 5G networks
- Network SIM
- Web Portal
The ARGES Sensors support the SDI12 V1.4 specification and as such suppply measurements directly into automatically defined SI (Engineering Units).

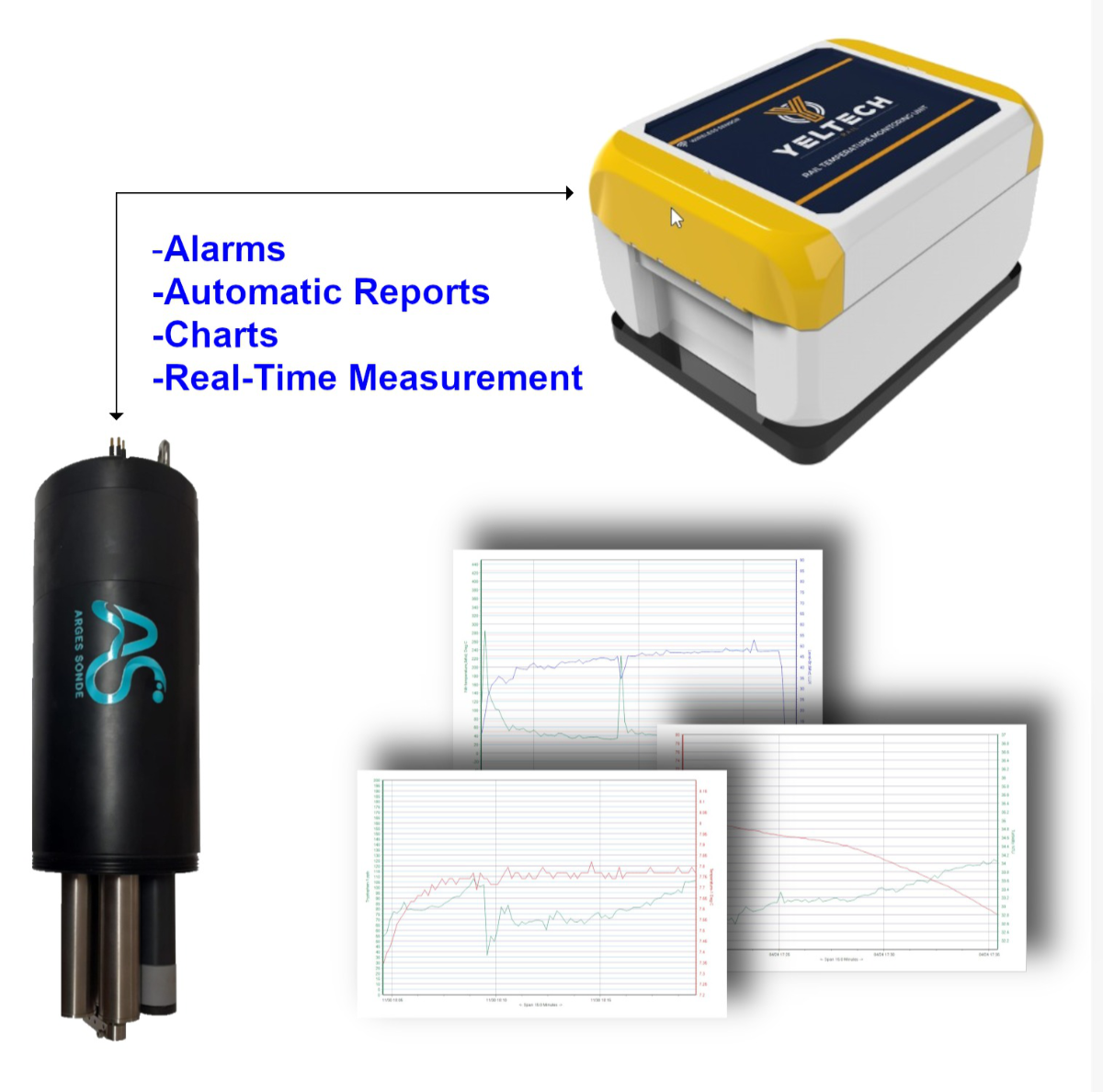

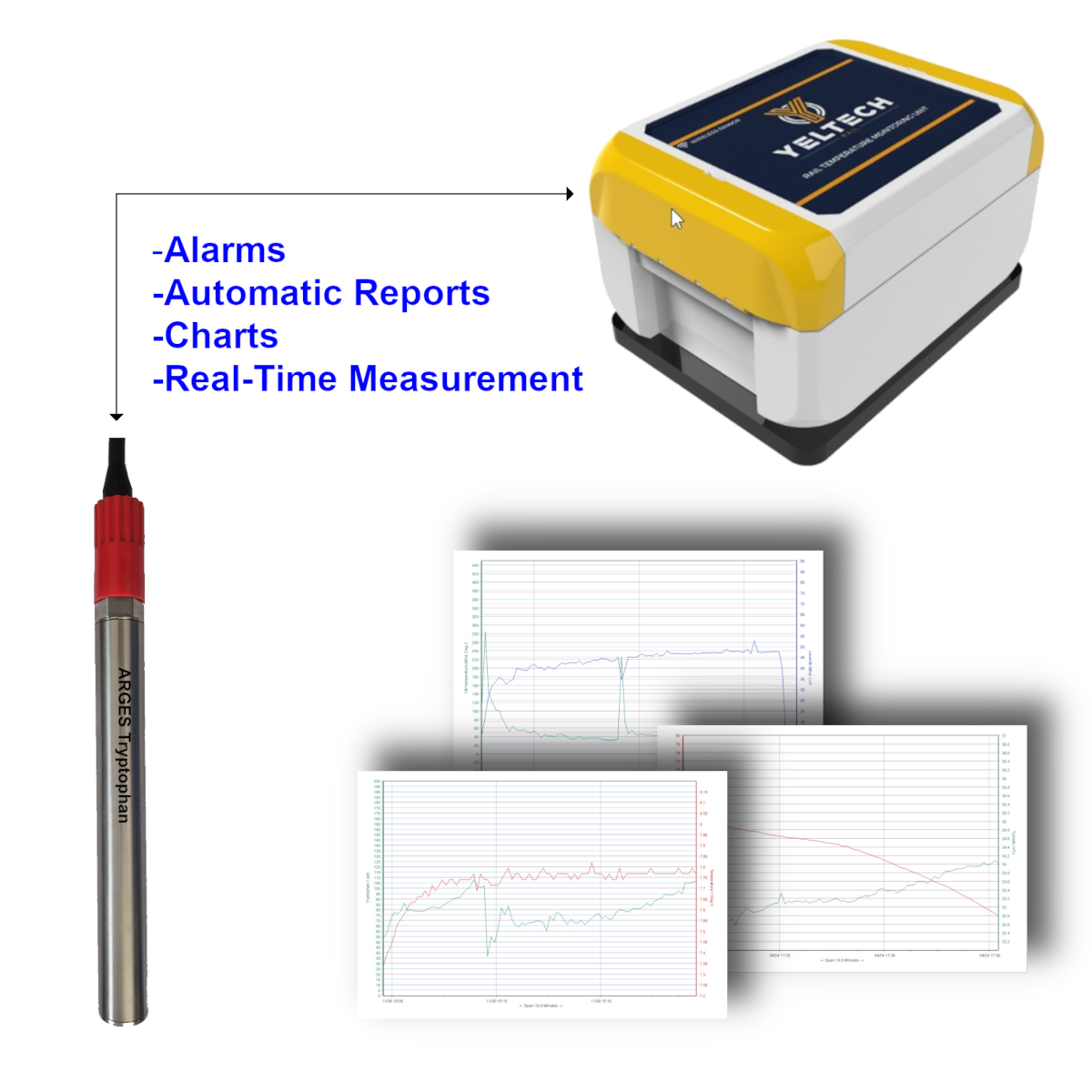

A Web Portal enables the user to see the results directly on a web. The logger shown below is easy to use, and is fastened magnetically onto any steel structure for fast installation. The User can set the device to report measurements at defined interval, and upon alarm level concentrations being detected. The Yeltec logger is suitable for many applications but additional features for the real-time measurements of Nitrite etc.. where calaculations using combined sensor measurements are required.
User defined charts allows the historic level of the different chemical concentrations to be observed on any suitable web based internet device such as a mobile phone, tablet or PC.
All of the ARGEs sensor range can be connected to the data logger. The Yeltec logger offers a very simple solution for remote data access for multiparameter devices such as the 7 port SONDE. Data is recorded and transmitted at a scheduled interval.
- Sewage Detection and Alarm Monitoring
- PAH Hydrocarbons
- Oil Spills
- Argicultural Run-off reporting
Additional sensors such as
Current Flow
Water Depth etc.. can be added.
