Many instruments available for measuring fluorescence of Tryptophan are old-fashioned, complex to use, expensive, and require a high degree of proficiency to operate. These instruments may also require expensive additional housings and accessories before they can be deployed for any monitoring task. End users who are looking for a simple to use instrument to make fluorescence measurements of Tryptophan need look no further that The ARGES Tryptophan Sensor by Keynes Controls.
The ARGES Tryptophan Sensor by Keynes Controls is a single-channel instrument that can detect and report Tryptophan levels in the range of 0.5 - 2000 ppb.
In-situ measurement, no sampling, no reagents
• Direct SI Unit output of parameters - SDI12 1.4 Compliant
• Optical window with coating to minimise clogging
• Background light level measurement
• Automatic compensation for temperature effects
Measurement Integrity
All of the ARGEs sensor range have the serial numbers and the last calibration date stored internally. The user can access this information for reporting purposes. The sensors can be redeployed at any time with the calibration and serial number records are retained in the sensor.
Why Measure Tryptophan
Some types of organic matter fluoresce at the same wavelengths as tryptophan. ‘Tryptophan-like’ fluorescence in river water is associated with the presence of organic matter that can be easily degraded by microbes. This type of organic matter can arise in rivers from sewage inputs, from farm wastes such as cattle and pig slurry and silage. So the measurements from the ARGES-Tryptophan sensor can be used to identify the presence of these organic wastes in a river.
Sewage Detection
Human sewage fluoresces at the same wavelengths as Tryptophan, so The ARGES Tryptophan Sensor by Keynes Controls can be used measure accidental spillages of human waste into a river. The ARGES Tryptophan Sensor by Keynes Controls can help identify mis-connections with sewer pipes in urban river locations. The Tryptophan sensor is commonly deployed with the ARGES Ammonia, submersible pH, Turbidity Sensor, Nitrate sensors when undertaking longer term monitoring tasks for human waste, sewage detection.
Product Features
| TYPE | RANGE (Typical levels) |
| Solid state Fluorometer | Excitation UV 280 nm |
| Concentration range: | 0.5 to 2000 ppb - other ranges on request - User adjustable |
| Serial number | Factory set - built into the sensor - download on command |
| Accuracy: | +/- 1 ppb 4 % of reading - Typical |
| Multi-parameter Housings |
Currently 7 / 3 Port Options - with wiper unit |
| Calibration Period: | Approximately 2 year between Calibration - |
| Sensor Material | Stainless-steel body - Gold plated Connector pins |
| pH Range | 0 - 14 |
| Return Parameters | User Assigned layout - Tryp(ppb) + Temp Comp Tryp (ppb) + Temp Deg C + LUX |
| Digital Communications | SDI12 / RS485 / MODBUS Digital Communications |
| Detection | 300 - 400 nm |
| Simple Calibration | Single, Multi point Calibration Point Option |
| SI Units |
Trypotophan (ppb) - Temperature (Degree Celsius) - Background Light LUX |
| Analogue Output |
0-2 V DC - proportional to concentration - optional |
Q-LOG Product Application Software
The ARGES Tryptophan Sensor by Keynes Controls is supplied with a free copy of the Keynes Q-LOG Applications software
The Q-LOG software runs on the Windows Operating System that can be used configure to acquire real-time measurements from individual ARGES sensors and multiparameter solutions. An optional USB interface enables the sensors to directly connect to a PC.

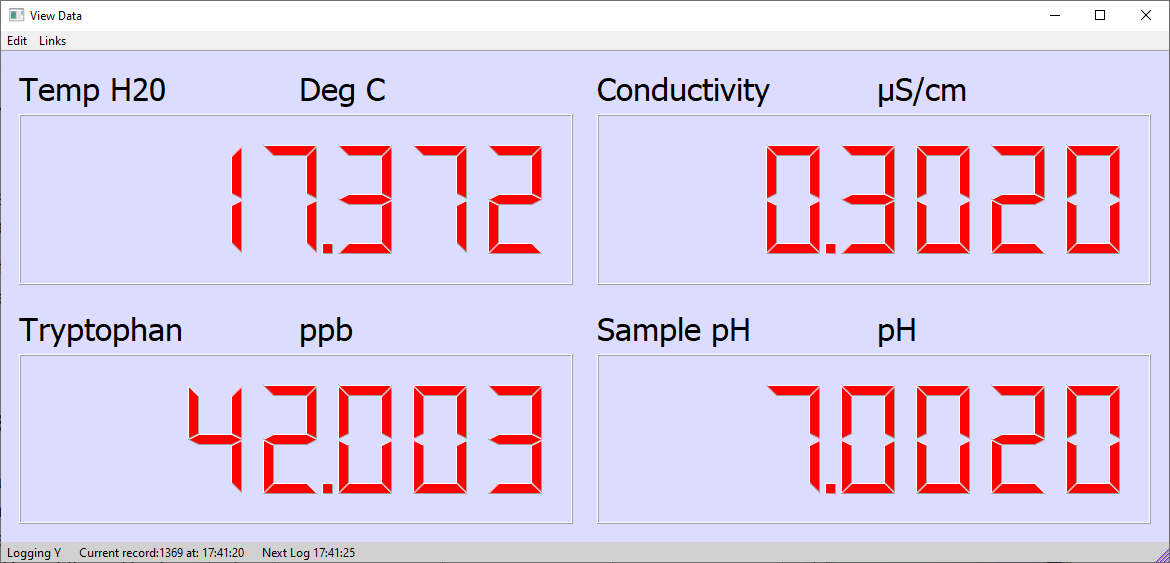

The measurements can be be shown in panel meters and charts.
Multiparameter Housing
The ARGES Tryptophan Sensor by Keynes Controls can be used as a stand-alone device or as a part of a multiparameter solution. Keynes Controls currently manufacture 7 port and 3 port sensor housings. An optional submersible brush unit is available for cleaning the fluorometer optics and this can be fitted into any port within the housings.

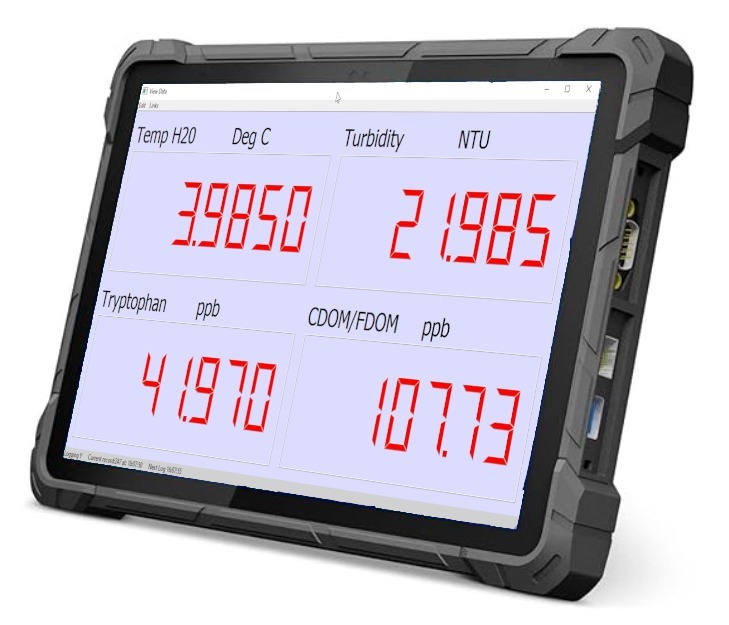

Multiparameter Measurements
Any combination of ARGES sensors selective can be fitted into the multiparameter housing

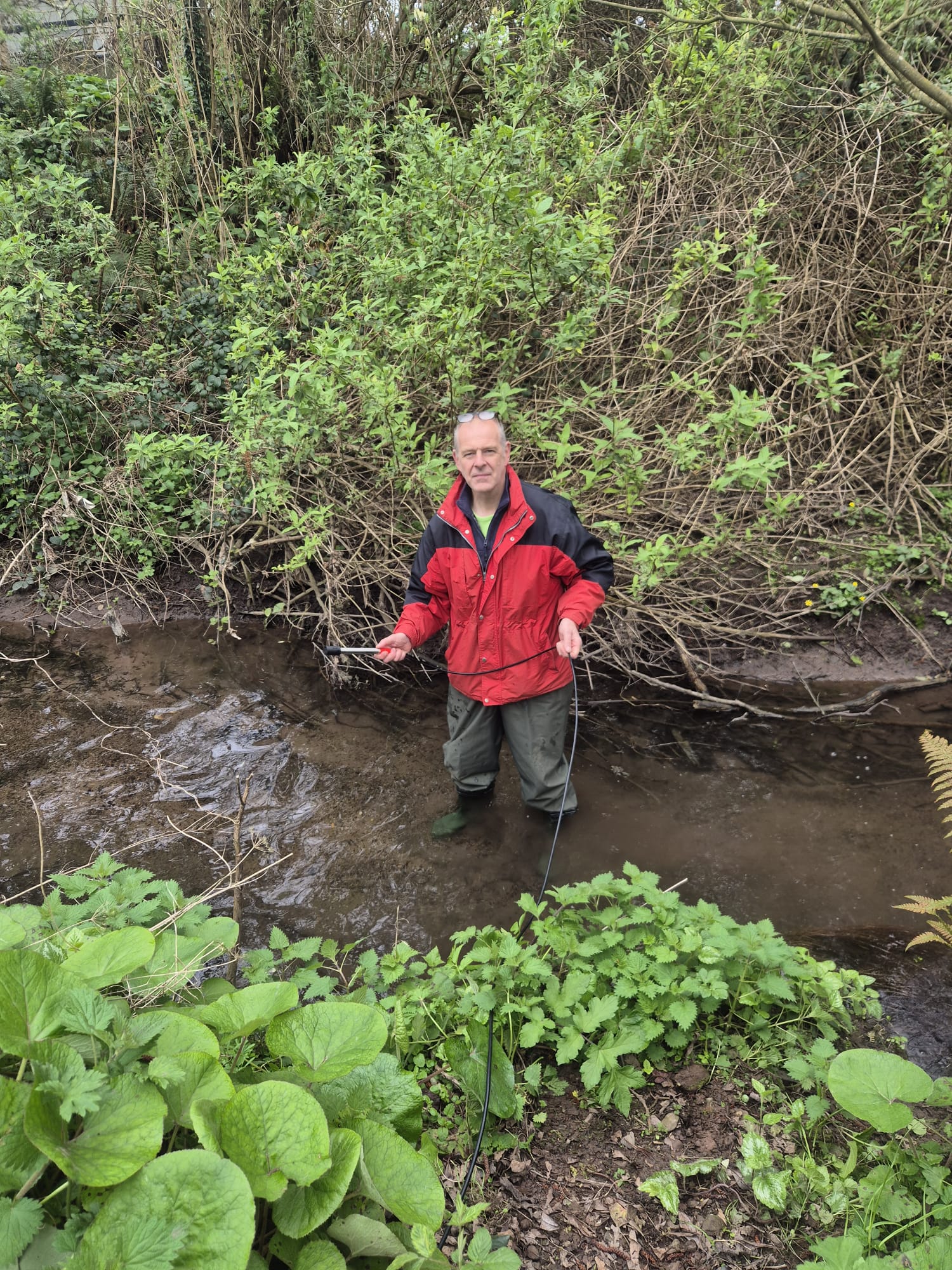

Deployment and Test Results August 2024
Calibration Period and Range
All of the sensors are Factory calibrated before shipment. The advanced design of the sensors means that the time between re-calibration of an instrument is minimised. Keynes Controls recommends a check calibration every year. The User can adjust the calibration for a specified range to improve accuracy for dedicated tasks.
Keynes Controls offer calibration solutions for ARGES Tryptophan sensors which are available from the online shop. There is a finite life for these solutions. Keep the calibration solution in a cool place in a seal plastic bottle.
Calibration Solution Part Number:
TRYP-1000-500 1000 ppb
TRYP-50-500 50 ppb
Specifications
| ENVIRONMENTAL CHARACTERISTICS | ||||
| Tryptophan | MDL 0.05 ppb | Range 0.5 - 2000 ppb | Non freeze | |
| Other ranges on request | 0 - 100 ppb (Low Level) | Ambient Range: 0 - 50 Degree Celsius | ||
| Water Temperature: -2 to 50 Degree Celsius | ||||
| Accuracy | +/- 4 % of Reading | |||
| PHYSICAL DIMENSIONS | ||||
| Resolution | 0.01 ppb | |||
| Length x Diameter: 22 x 205 mm | ||||
| Sample Period |
|
Weight: 108 g | ||
| Wiper Trigger | SDI12 Command | aM! | Maximum Depth : 50 m - 500m on request | |
| Excitation | UV | Built-in Network Types: | ||
| Housing | 316 Stainless Steel | MODBUS / SDI12 / RS485 / Analogue Output | ||
| Focal Point | In-front of sensor faceplate | |||
| Data Output | SI Units - ppb / Degrees Celcius | Supply Voltage: 10 - 18 V DC Standby Current 8 mA 24 mA Active measurement |
Supported Commands
| Most commonly used commands | ||
| Start measurement | aM! | a05\r\n where 05 = time delay before measurement sent |
| Send ID | aI! | a14KEYNESCOFLOURS017Tryp000n Part description assigned by Keynes |
| Address Query | ?! | Where a = ID number - 0 - 9 (standard) / (a..z) Enhanced SDI-12 |
| 0 - 9 / a - z for RS485 | ||
| Change Address | aAb! | where a = Initial address and b = Final address |
| Start Measurement | aM! | Make a measurement - a = address of sensor |
| Example 1M! starts a measurement for sensor with ID=1 | ||
| Set Output Variables | XCSTR0! | Sets the parameter order for measurements sent from the sensor - factory set BCKL |
| Read Serial Number | aXSN! | Instrument Response a+Serial-number |
| Calibration Date | aXCD! | Instrument Response a+date |
| | | ||
| Calibration Commands | ||
| First Calibration point (ppb) | XCA0 | Typical value = 1000 (ppb) - High value |
| First Calibration - uncompensated (ppb) | XCA1 | Typical Value = 1000 as prepared from calibration standard |
| Second Calibration point (ppb) | XCA0 | Typical value = 20 (ppb) |
| Second Calibration - uncompensated (ppb) | XCA1 | Typical Value = 20 as prepared from calibration standard |
Built-in Communication Options
The ARGES Tryptophan Sensor by Keynes Controls supports SDI-12, RS485 and MODBUS digital communications as standard enabling the sensors to be directly connected to Data Logger for remote web based reporting, onto Wi-Fi and Local Area Networks using the RS485 option, and directly into SCADA applications using the MODBUS.
MODBUS Operations
ALL of the ARGES range of chemical sensors support MODBUS network operations The sensors act as a slave unit only and can communicate to suitable controllers and SCADA systems that support the MODBUS Protocol. The sensors support 16 and 32 bit registers.
The ARGES sensors can be connected to a PC based system using the optional USB-485-Pro media converter. This device can power the chemical sensor and supports the correct timing protocols for data transmission for MODBUS and standard RS485 network communications.
