ARGES Lead Sensor
The Intelligent Submersible Dissolved Lead Sensor By Keynes Controls, is a high performance submersible sensor that has been designed to simplify the acquisition of water quality measurement parameters into any platform that supports data logging operations using digital network communications.
Each of the Intelligent Submersible Dissolved Lead Sensor by Keynes Controls is suitable for direct connection to industry standard SDI12 Data Recorder, RS485 and MODBUS networks. The instruments can communicate directly across a MODBUS network and can be integrated into plant wide SCADA applications and to to many 3rd party PLC controllers.
The stainless steel and PVC construction allows for long-term deployment of sensors for remote applications. The sensor connector is gold plated, making it suitable for underwater connections.

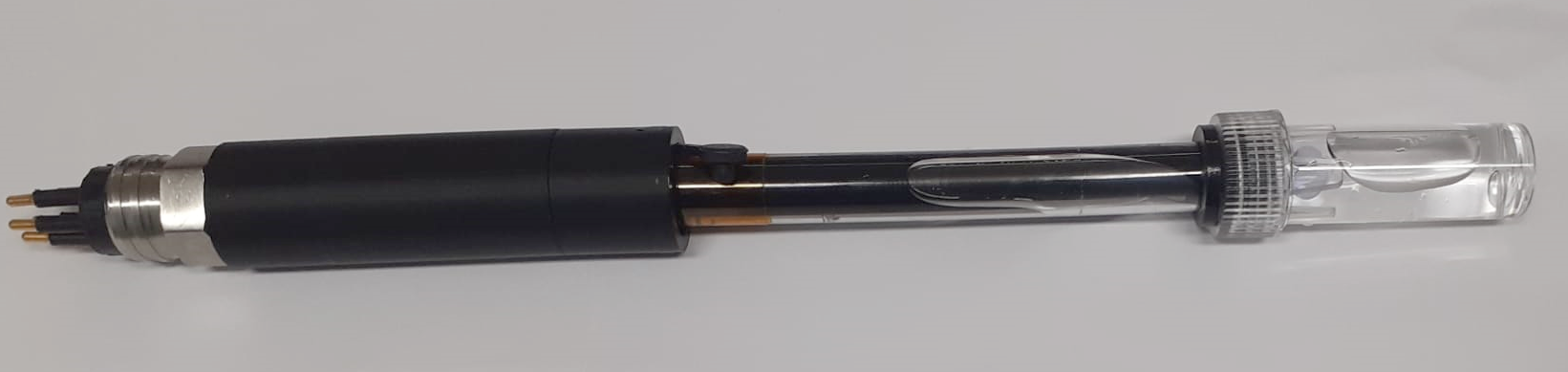

Sensor Construction
The stainless steel and PVC construction allows for long-term deployment of sensors for remote applications. The sensor connector is gold plated, making it suitable for underwater connections.
ISOLATION
The sensor element of the Lead Sensor is isolated to prevent any current flow between measurements. This prevents contamination of the sensor element and maintains the long active life of the device. When no measurement is being made the sensor is in low power mode.
Product Features
| TYPE | RANGE (Typical levels) |
| Solid state ISE sensor. | |
| Concentration range: | 1.0×10-6 - 0.1 mol/L 0.2 - 20,800 ppm |
| Resolution: | Five auto range scales: 0.00 - 999.9mg/l. |
| Accuracy: | +/- 3% of reading. |
| Stand-alone and SONDE Multi-parameter operations |
|
| Sensor life: | Approximately 1 year, depending on usage. |
| Interference IONS | Cooper, Mercury, Silver, |
| pH Range | 3 - 7 |
| Sensor Element | Isolated between measurements |
| Digital Communications | SDI12 / RS485 / MODBUS Digital Communications |
| Full Digital Operation | |
| Simple Calibration | Multi point Calibration Point Option |
| SI Units |
µg/L |
Calibration Summary
The Intelligent Submersible Dissolved Lead Sensor By Keynes Controls can be used within SONDE multi-parameter housing, or as a stand-alone sensor. The Dissolved Lead sensor should calibrated before use for optimum results.
Keynes Controls offer a calibration kit for The Intelligent Submersible Dissolved Lead Sensor and this is available from the online store.

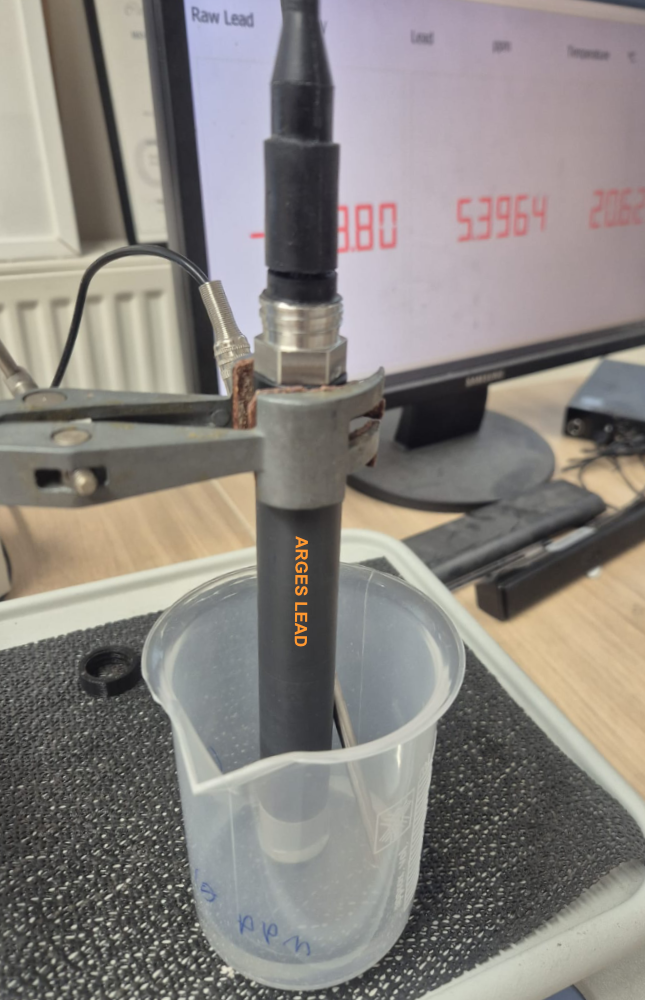

The ARGES Dissolved Lead sensor is typically calibrated at 2 points. A Zero point which uses the distilled water, and the 100 ppm end point calibration. The overall accuracy of the sensor will depend upon how well the ARGES Dissolved Lead sensor has calibrated.
Multi-parameter System
The Dissolved Lead Sensor can be fitted inside a multi-parameter SONDE and used in collaboration with additional ARGES instruments.

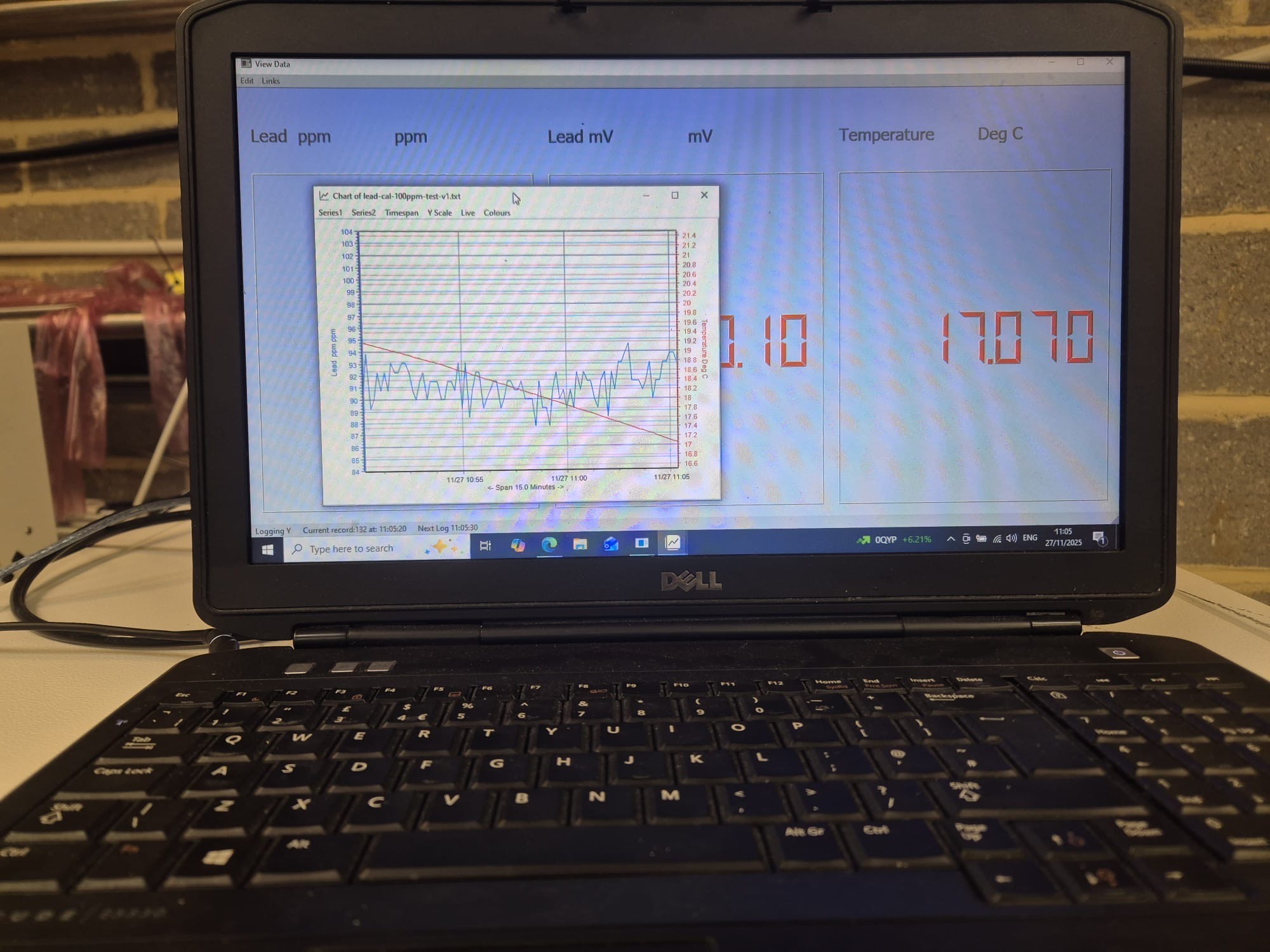

The image opposite shows a group of ARGES sensors in a SONDE, The SONDE is being tested using the Keynes QLOG software which is freely issued with this product.
Storage and Handling
When not in use the ARGES Intelligent Submersible Dissolved Lead Sensor By Keynes Controls head should be kept hydrated with the protective cap attached.
Storage temperature range : 2 - 60 Degrees Celsius.
Further Information
The Submersible Dissolved Lead Sensor by Keynes Controls monitors dissolved lead levels in water. The ARGES Dissolved Lead Sensor readings are influenced by temperature . For comprehensive insights into dissolved lead levels in a water source, it is recommended to deploy this sensor alongside other water quality sensors.
Fresh Water Dissolved Lead Levels
- Lead in Drinking Water - House of Commons Library - 21st May 1997 - Level of lead in drinking water should not exceed 50 µg/l
- Common UK Standard is 10 µg/l target for many organisations involved in water treatment.
- River water Dissolved Lead typically 3 -30 ppb
Salt Water Dissolved Lead Levels
Seawater contains trace amounts of lead (2-30 ppt). On average rivers contain between 3 and 30 ppb. Phytoplankton contains approximately 5-10 ppm lead (dry mass), freshwater fish approximately 0.5-1000 ppb, and oyster approximately 500 ppb.
Temperature - Dissolved Lead
Each 1 degree Celsius rise in water temperature boosts dissolved lead levels by about 17 percent and lead particles by about 36 percent,
Application Uses
- Water Quality Monitoring
- Run-off contamination water sources.
- Suitable for Laboratory and Field Applications
- Low Cost
- No Filling Solution
- Rugged Solid State
Product Specifications
| Network Type | ENVIRONMENTAL CHARACTERISTICS | |||
| SDI12 | 1.4 | Temperature Range: 0 to 80 Degree Celsius | ||
| RS485 | Ambient Range: 0 - 50 Degree Celsius | |||
| MODBUS | 16 and 32 Bit Registers | Water Temperature: -2 to 60 Degree Celsius | ||
| Maximum Depth: 20 m | ||||
| Process Electrodes: | Reference Electrode | Potentiometric Type Operation | ||
| Material: | PVC / Stainless Steel | PHYSICAL DIMENSIONS | ||
| Interference ION: | Cu2 + Ag+ | Length x Diameter: 22 x 220 mm | ||
| Weight: 97 g | ||||
| Settling Time |
|
Maximum Depth : 100 m | ||
| Wiper Trigger | SDI12 Command | aM! | ||
| Built-in Network Types: | ||||
| Excitation | Galvanic | SDI12 / RS485 / MODBUS over 485 | ||
| Housing | 316 Stainless Steel and PVC | |||
| Sensor Connector | Gold Plated | Power Requirement | ||
| Voltage Range: 10-18 V DC | ||||
| Data Output | - µg/L Degree Celsius | Standby Current: 1 mA Typical | ||
| Reading: 10 mA Typical |
Please Note: The DISSOLVED Lead and Temperature sensors are pre-calibrated at the factory.
The sensor head should be kept hydrated after use.
Supported Commands
| Most commonly used commands | ||
| Description | Master | Sensor Response |
| Send ID | aI! | a13KEYNESVWRDOA001\r\n |
| Address Query | ?! | a\r\n where a = Address |
| Start Measurement | aM! where a = Address | a0261\r\n |
| Concurrent Measurement: | aC! where a = Address | a0261\r\n |
| Get Measurement | aD! where a = Address | a+Lead-µg/L+Temp (Degree Celsius) |
| Read Serial Number | aXSN! | Instrument Response a+Serial-number |
| Calibration Date | aXCD! | Instrument Response a+date |
Commonly used with: Hydrocarbon, pH, Turbidity Temperature Sensors.
The Submersible Dissolved Lead Sensor detects the levels of Dissolved Lead in water. The ARGES Dissolved Lead Sensor readings can be affected by changes in temperature and pH This sensor is frequently paired with Turbidity, pH, and other temperature sensors crafted and produced by Keynes Controls.
Hydrocarbon Sensor =The ARGES Hydrocarbon Fluorometer by Keynes Control is a single-channel instrument that can detect and report hydrocarbon levels levels in the range of 0 - 2000 ppb and temperature in Degrees Celsius.
Submersible pH Sensor = The Intelligent Submersible Ph Sensor by Keynes Controls, is a high performance submersible sensor that has been designed to simplify the acquisition of water quality measurement parameters into any platform that supports data logging operations using digital network communications. Read More...

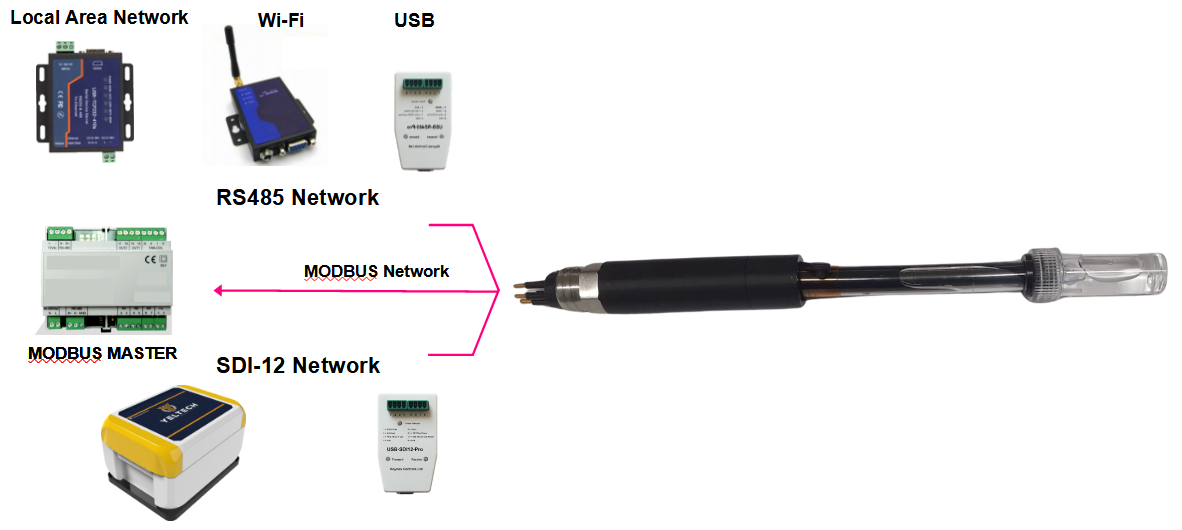

Built-in Communication Options

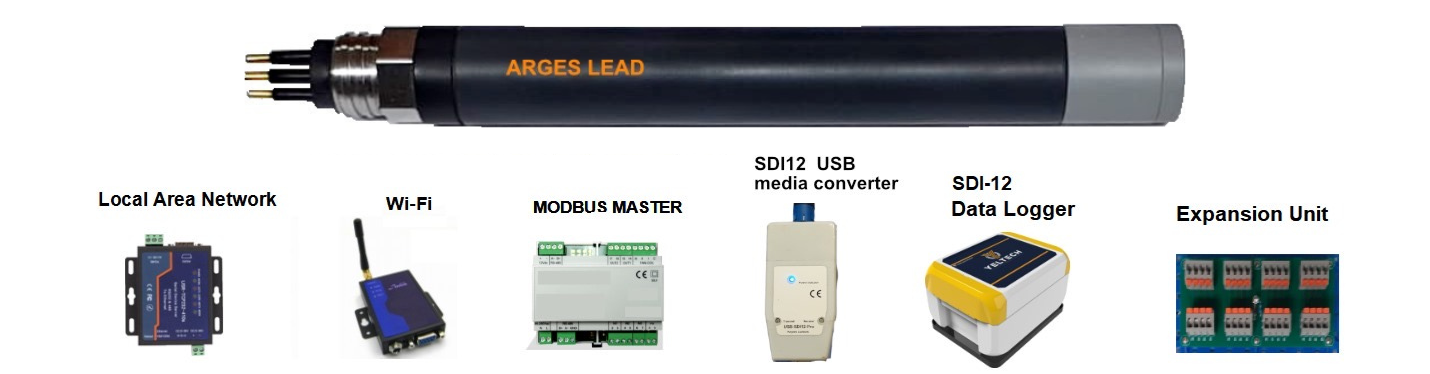

The ARGES Dissolved Lead sensor supports SDI12, RS485 and MODBUS digital communications as standard enabling it to be directly connected to Data Logger for remote web based reporting, onto Wi-Fi and Local Area Networks using the RS485 option. The MODBUS and RS485 option are often used to connect sensors to a PLC Controller and Display Units,. The MODBUS protocol enables the sensors to be used directly by most SCADA applications software.
MODBUS Operations
ALL of the ARGES range of chemical sensors support MODBUS network operations The sensors act as a slave unit only and can communicate to suitable controllers and SCADA systems that support the MODBUS Protocol. The sensors support 16 and 32 bit registers. .
The ARGES sensors can be connected to a PC based system using the optional USB-485-Pro media converter. This device can power the chemical sensor and supports the correct timing protocols for data transmission for MODBUS and standard RS485 network communications.
Optional Extras

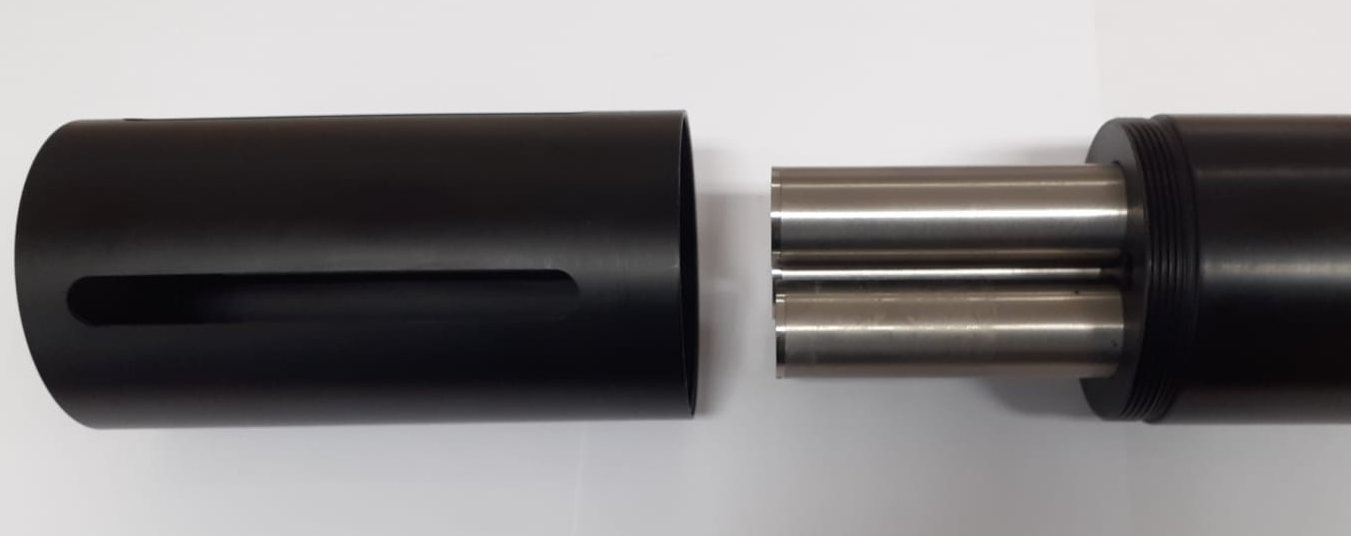

Any combination of the ARGES sensors can be installed into 3-Sensor and 6-sensor SONDE multi-parameter housings.
The dissolved oxygen sensor should be grouped with any of the other single ion sensors in the SONDE. The ARGES Dissolved Lead sensor is slightly longer than the fluorometers and as such is not cleaned by the brush unit should this device be installed. The submersible brush unit can be set to clean only the fluorometers and is programmable..
Accessories
Keynes Controls manufactures a range of accessories that can be used to connect the ARGES range of sensors to a Windows Computer system and enable the sensors to be used in Laboratory application, multiple -parameter instruments and calibration operations.

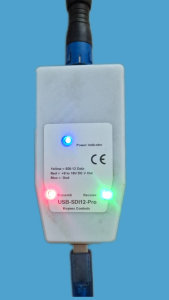

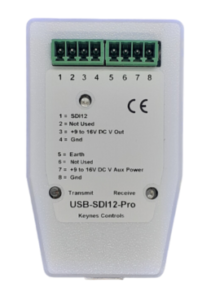

The optional USB media converters can be used to connect the dissolved oxygen sensor directly to a Windows PC. It can also be used to connect a multi-parameter instrument system to a PC.
The ARGES Dissolved Lead sensor is integrated into the Keynes Controls Q-LOG software.

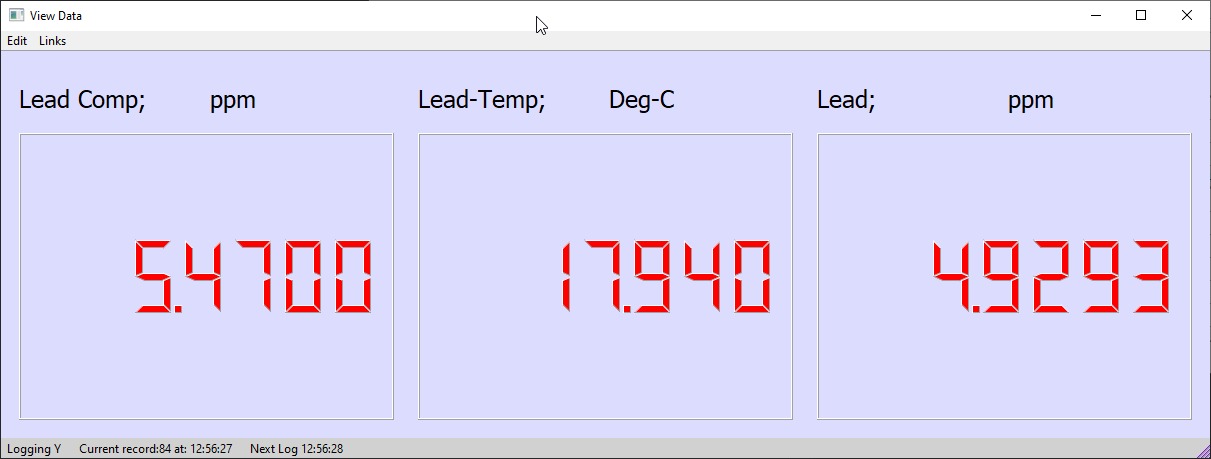

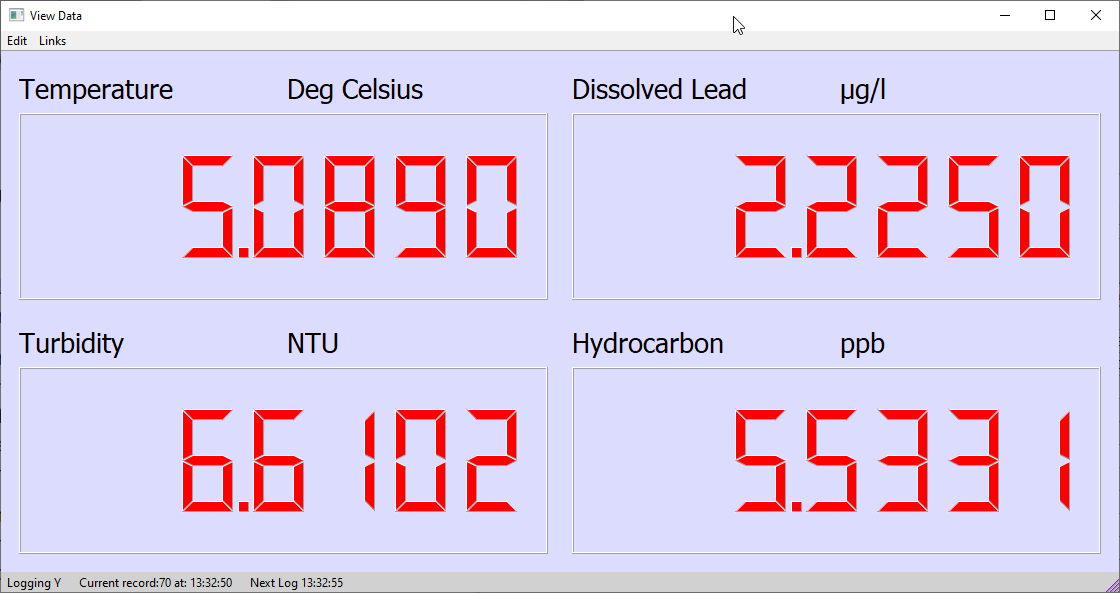

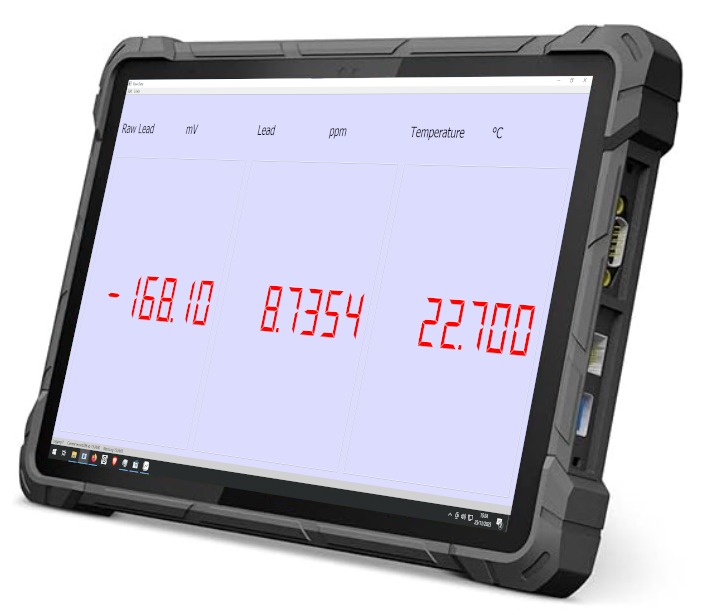

Our Q-LOG software runs on the widely recognized Windows Operating system, you have the ability to calibrate, adjust instrument network address, and effortlessly display measurements on a series of panel meters and charts. Conveniently store results in text based files for quick analysis in spreadsheets.
Our highly chemical sensors provide chemical concentration and local temperature readings in SI units (Engineering units). Customize the SI units based on your instrument's capabilities, including support for multiple units like turbidity sensors, all easily managed through the device setup.
Experience the convenience of Q-LOG, enabling you to effortlessly make and install calibration values into your instrument.
Connect our Fluorometers directly to SDI12, RS485, and MODBUS networks, leveraging the versatility of Q-LOG to acquire measurements on SDI12 and RS485 networks. SDI12 communications are perfectly suited for seamless integration with data loggers, while RS485 is ideal for larger-scale network applications. Maximize efficiency by simultaneously testing all sensors of a multi-parameter instrument prior to deployment.
For added convenience, the optional USB interface allows you to comprehensively test and validate the sensors' operations, ensuring seamless integration into your own application. Trust in the performance and accuracy of our multi-parameter systems!
